Quarrying Solutions — Machinery

Quarrying
Machinery

Four precision-engineered machines built for the harshest quarrying environments — from stone cutting to controlled block separation.

01 Diamond Wire Saw 02 Slim Drill Machine 03 Air Bag System 04 Hydro Water Bag

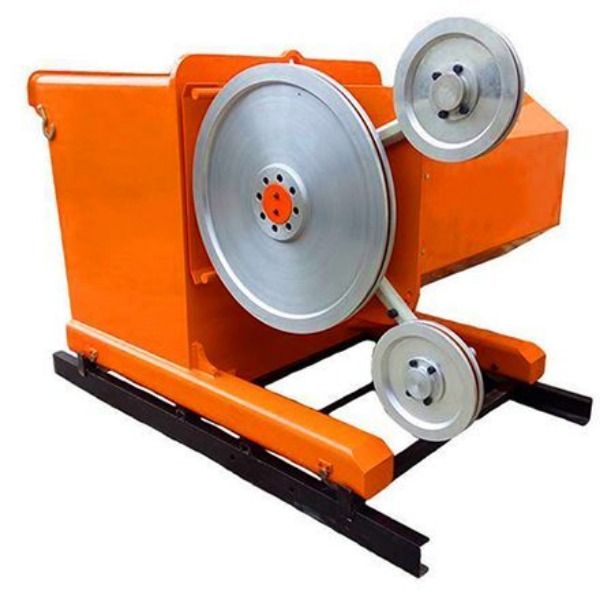

Diamond Wire Saw Machine
💎
Diamond Wire Saw High-Precision Cutting
Product 01 / 04
Quarrying Machinery

Diamond
Wire Saw

High-Precision Stone & Concrete Cutting

Our Diamond Wire Saw Machine is engineered for heavy-duty industrial cutting, delivering unparalleled efficiency in quarrying, large-scale demolition, and reinforced concrete cutting. The diamond-embedded wire loop cuts through granite, marble, sandstone, and concrete with minimal waste and superior precision — giving quarry operators maximum yield per block.

Continuous Diamond Wire Loop
Variable Speed Drive
Water Cooling System
Remote Control Panel
Low Vibration
High Yield Output
Technical Specifications
Motor Power22–75 kW
Wire Speed0–35 m/s
Wire Diameter6–11 mm
Cutting DepthUp to 10 m
Drive SystemVariable Frequency
ApplicationGranite / Marble / RCC
Applications
🪨 Granite & marble quarrying operations
🏗️ Reinforced concrete demolition & bridge cutting
🏢 Building & structure dismantling
⚙️ Underwater cutting projects
Get Quote Call Us Now

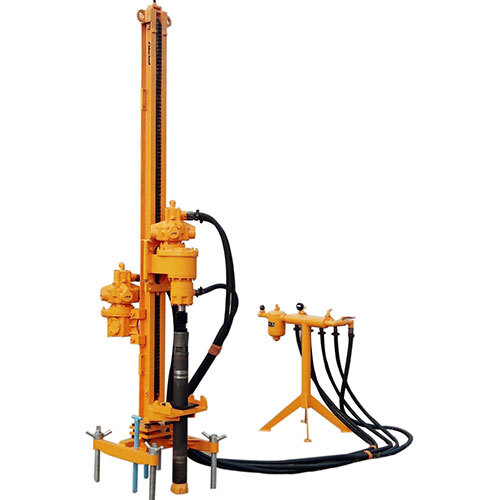

Product 02 / 04
Quarrying Machinery

Slim Drill
Machine

High-Speed Core & Anchor Specialist

Engineered for agility and precision, our Slim Line Drill Machine is the industry standard for drilling in confined spaces and high-accuracy anchoring. Its slim profile allows access to tight quarry zones where conventional drills cannot operate, making it indispensable for wire saw installation, blast hole drilling, and controlled rock fragmentation setups.

Compact Slim-Profile Body
High-Torque Motor
Anti-Vibration System
Quick Bit Change
Dust Extraction Port
Multi-Angle Drilling
Technical Specifications
Motor Power4–15 kW
Drill Speed0–1200 RPM
Drill Diameter25–120 mm
Drill DepthUp to 6 m
Weight45–80 kg
ApplicationRock / Concrete / Masonry
Applications
🏔️ Wire saw entry hole drilling in quarries
⚓ Anchor bolt installation & rock bolting
💥 Controlled blast hole drilling
🏛️ Heritage stone restoration & precision work
Get Quote Call Us Now
Slim Drill Machine
🔩
Slim Drill Machine Core & Anchor Drilling

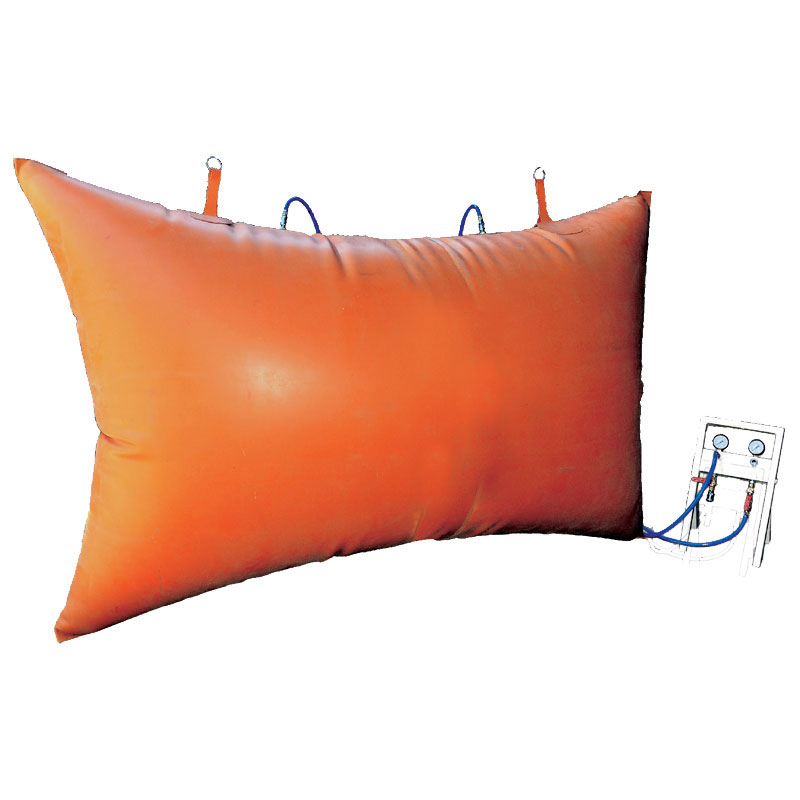

Industrial Air Bag System
💨
Air Bag System High-Force Rock Pusher
Product 03 / 04
Quarrying Machinery

Industrial
Air Bag

High-Force Rock & Block Pusher

Our Industrial Air Bag System is a revolutionary solution for the primary separation of large stone blocks and reinforced concrete structures. Inserted into pre-drilled slots or natural fissures, the air bag inflates under controlled pressure to exert massive uniform force — splitting blocks cleanly without the micro-fractures caused by explosive methods.

High-Pressure Inflation
Rubber & Reinforced Shell
Reusable Design
No Micro-Fractures
Multiple Sizes Available
Safe & Explosion-Free
Technical Specifications
Operating Pressure0–20 MPa
Expansion ForceUp to 3000 kN
Bag Length500–3000 mm
Bag Diameter35–80 mm
MaterialSteel-reinforced Rubber
Reuse Cycles500+ cycles
Applications
🪨 Primary block separation in dimension stone quarries
🏗️ Concrete slab & retaining wall breaking
⛰️ Controlled rock fragmentation in mines
🌿 Environmentally sensitive demolition sites
Get Quote Call Us Now

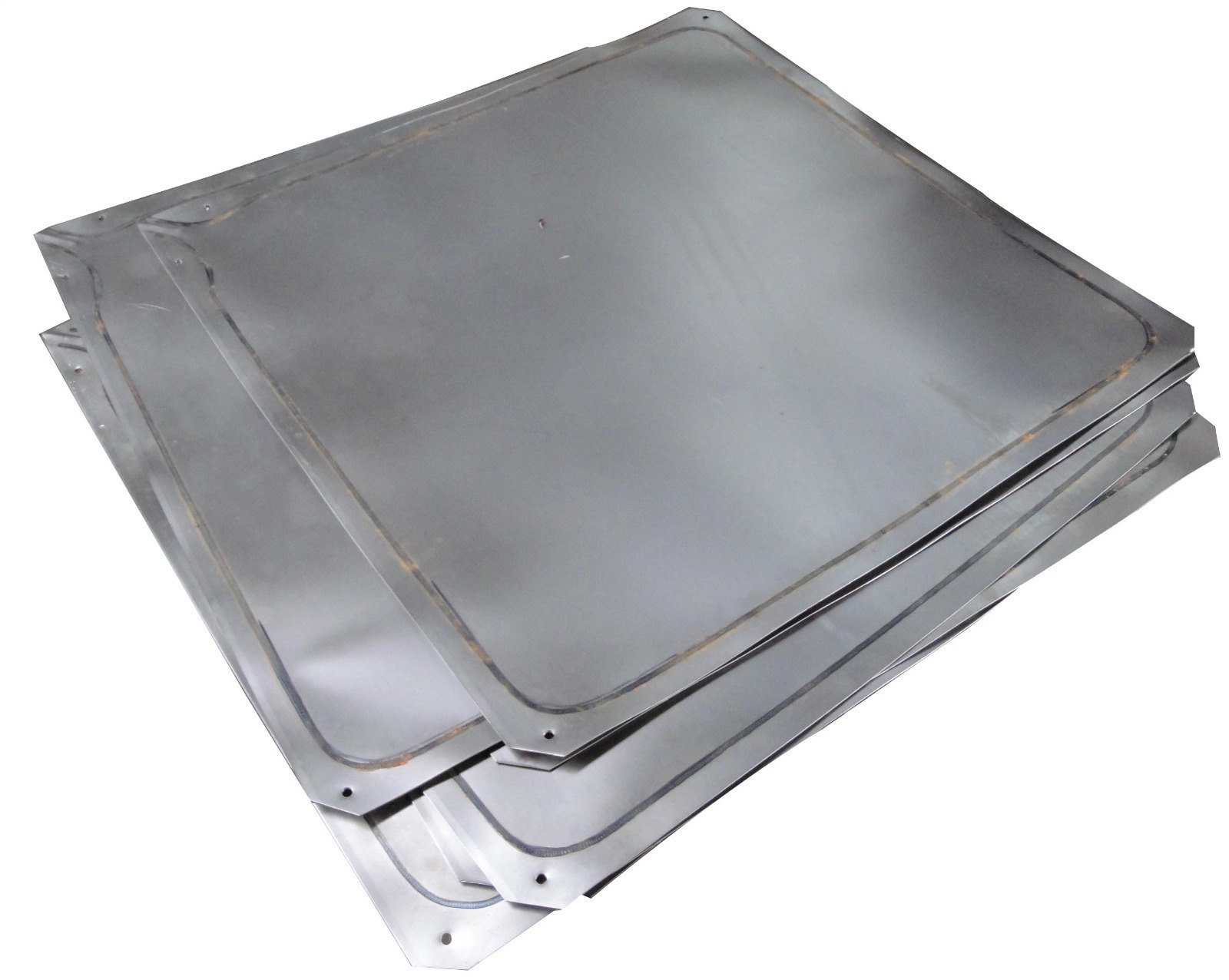

Product 04 / 04
Quarrying Machinery

Hydro
Water Bag

High-Pressure Block Expansion System

Our Hydro Water Bag system is the premier choice for powerful and controlled displacement of massive stone blocks in quarries. Operating on hydraulic water pressure, it delivers significantly higher splitting force than air-based systems — making it the go-to solution for hardrock granite quarrying where blocks weigh tens of tonnes.

Hydraulic Water Pressure
Ultra-High Splitting Force
Progressive Force Control
Stainless Steel Construction
Zero Vibration Cutting
Long Service Life
Technical Specifications
Working Pressure0–70 MPa
Max Splitting ForceUp to 10,000 kN
Bag Length600–4000 mm
Bag Diameter40–100 mm
Pump TypeHydraulic Hand / Motor
ApplicationGranite / Basalt / Gneiss
Applications
🪨 Hardrock granite & basalt quarrying
🏔️ Large block displacement in deep quarries
🚧 Road cutting & railway construction
🏛️ Monument & heritage stone extraction
Get Quote Call Us Now
Hydro Water Bag
💧
Hydro Water Bag Block Expansion System
